300mm 450mm 600mm Yellow Sticky Glue Trap Board Making Machine For Agriculture
-
Resaltar
yellow sticky glue trap board machine
,agricultural rat glue trap maker
,300mm 600mm glue trap machine
-
Tipo de pegamentolado doble
-
FunciónPegamento, conbined, el cortar, contando
-
velocidad de trabajo20000 piezas/hora
-
poder total18.5 kW
-
SOCIEDAD ANÓNIMAMarca Mitsubishi
-
Motor de servomotorMarca de Panasonic
-
fuente de presión de aire² de los 5-7kgf/cm
-
CaracterísticaEcológico
-
Tipo del control de parásitoTrampas
-
Servicio postventa proporcionadoIngenieros disponibles para maquinaria de servicio en el extranjero, soporte en línea
-
Voltaje220/380V
-
Lugar de origenPorcelana
-
Nombre de la marcaKingsun
-
CertificaciónCE ISO
-
Número de modeloKS-N1
-
Cantidad de orden mínima1
-
Precionegotiable
-
Detalles de empaquetadocaja de madera
-
Tiempo de entrega25-30 días de trabajo
-
Condiciones de pagoT/T, Western Union, L/C, MoneyGram, D/A, D/P
-
Capacidad de la fuente30 conjuntos por mes
300mm 450mm 600mm Yellow Sticky Glue Trap Board Making Machine For Agriculture

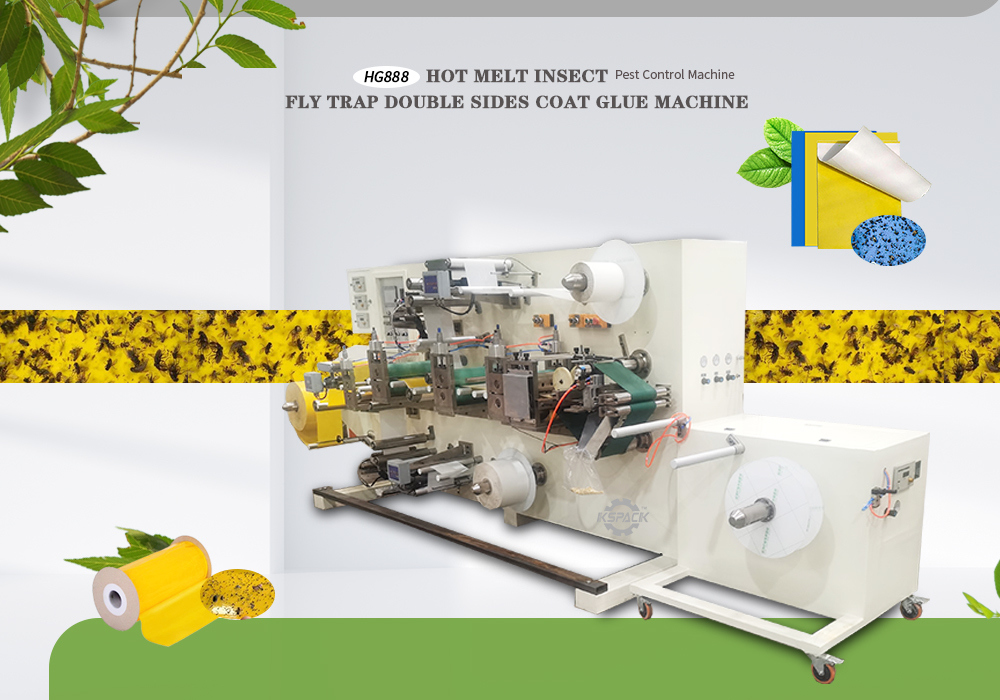

The glue trap board making machine is a special equipment for the production of sticky insect board. Adhesive application, punching, and slitting can be done on this device at once. The device is easy to operate, convenient, and is a high-speed, efficient and stable equipment.
| Basic Function | glue+combined+cutting+counting |
|---|---|
| Compound Function | slitting+punching+rewind+creasing |
| Max Coil Width | 300mm or special custom |
| Max Glue Width | 290mm or special custom |
| Max Coil Diameter | 800mm |
| Coil Inside Diameter | 76mm |
Through the transition wheel of the machine in turn, install one roll of substrate and two rolls of release paper on the material roll of the machine, let the main drive rubber wheel reach the cutter.
Two sets of glue guns apply glue on the release paper or silicone oil surface of the release film at the same time. The base material is laminated, and the cutter cuts it into single sheets according to the set length, and the finished product is punched through the punching device.
